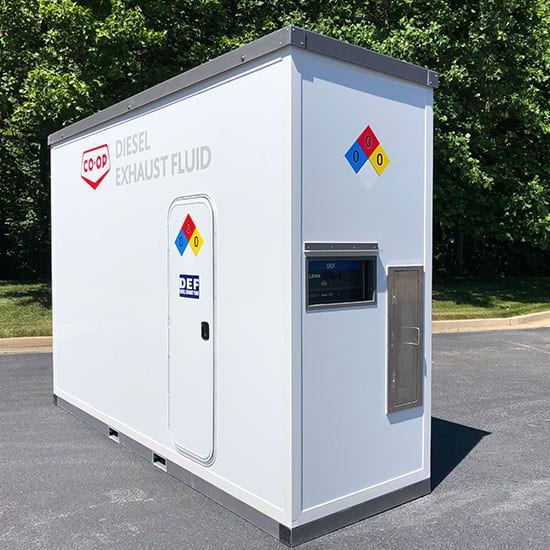

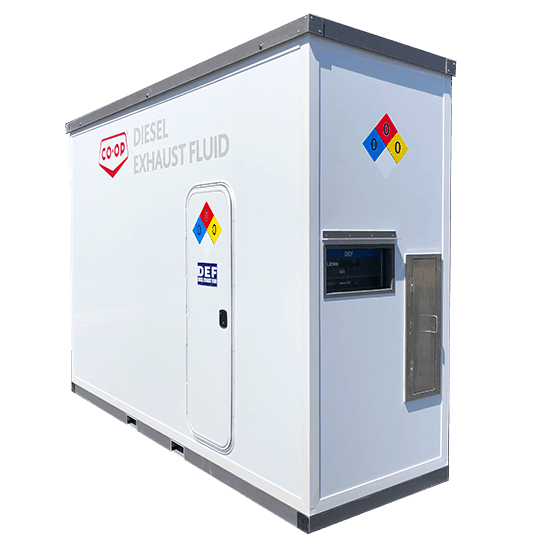

3rd Party Dispenser (WMW) Platinum

Features & Components Included

Standard Features:

  • Pre-wired electrical components certified to UL-508 & CSA C22.2 standards
  • Submersible DEF pump (1/2 HP)
  • 3rd Party Warm Weather Dispenser, Factory Integrated
  • Built-in SS dispenser interface w/external hose assembly
  • Inventory level display
  • HDPE primary tank with manway
  • Insulated FRP panels
  • Aesthetically pleasing, smooth, glossy white exterior finish
  • Conforms to ISO 22241-3,4 standards
  • Fixed, removable roof
  • Stainless steel piping
  • 1 micron DEF Filter
  • 2” Fill-port dry break adapter
  • Leak-proof press fittings & BSPP connections
  • Atmospheric vent w/protective screen
  • Forklift compatible base frame



Optional Features:

  • Thermostatically controlled heater
  • Exhaust Fan
  • Heated Hose
  • Low Level Warning Light
  • Control Room Light
  • Bolt-Down Anchoring Kit
  • Undercarriage Insulation
  • And much more! Call our sales team today for more options!

Capacity (Gallons) Weight (lbs) Dimensions (WxDxH)
400 1950 48x96x103 inches
500 2000 44x132x89 inches
750 2200 46x140x99 inches
1000 2500 46x150x110 inches
1320 2800 46x179x110 inches
2000 3500 74x214x96 inches
3400 4400 93x210x109 inches
6000 6700 110x248x125 inches

Files For Download

3rd Party W&M – Narrow – Right Dispense (500g-1320g)
3rd Party W&M – Narrow – Left Dispense (500g-1320g)
3rd Party W&M – Narrow – End Dispense (500g-1320g)
3rd Party Dispenser Platinum
3rd Party Dispenser Platinum Spec Sheet
3rd Party W&M – Wide – Side Dispense (2000g-6000g)
